500F

Colours:

Black White Red


Coming in 2027


BE THE FIRST TO KNOW
Home / Range / Naked / 500F
500F - Front View
470
Displacement (CC)
54 / 11000
Max. Power (kW / rpm)
48 / 9500
Max. Torque (N.m / rpm)
175
Curb Weight (Kg)
500F - Rear View

READY TO RIDE?

Find your nearest ZXMOTO dealer and experience the range up close. From first look to first ride, our network is here to support every step.

FIND A DEALER

SPECIFICATIONS

Engine Type Inline 4-cylinder,DOHC,16-valve,liquid-cooled
Max. Power (kW / rpm) 54 / 11000
Max. Torque (N.m / rpm) 48 / 9500
Displacement (CC) 470
Bore x Stroke (CM) 5.9 x 4.3
Compression Ratio 12.9:1
Fuel Delivery BOSCH EFI
Clutch Type Wet Multi-Plate Slipper Clutch

Frame Type Integrated Steel Trellis Diamond Frame
Rear Swing Arm Dual-sided swing arm (aluminum alloy)
Steering Angle 33.5 degrees
Rake Angle 24.5 degrees
Front Suspension Inverted, Adjustable Damping
Rear Suspension Monoshock

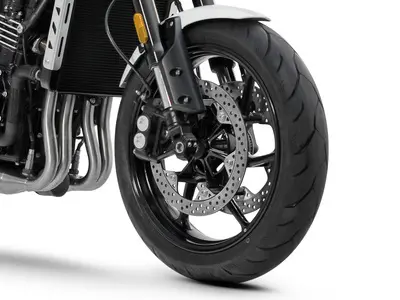

Front Brake Dual 300mm Floating Disc
Rear Brake 220mm Single Disc
Front Caliper Dual 2-Piston Floating Caliper
Rear Caliper 1-piston Floating Caliper
Front Tyre 120/70-17
Rear Tyre 180/55-17
Front Wheel Rim Aluminum Alloy Cast Font MT3.5 x 17
Rear Wheel Rim Aluminum Alloy Cast Rear MT5.5 x 17

Overall Length (mm) 2015
Overall Width (mm) 805
Overall Height (mm) 1090
Seat Height (mm) 795
Wheelbase (mm) 1395
Ground Clearance (mm) N/A
Kerb Weight (kg) 175
Fuel Capacity (L) 15.5

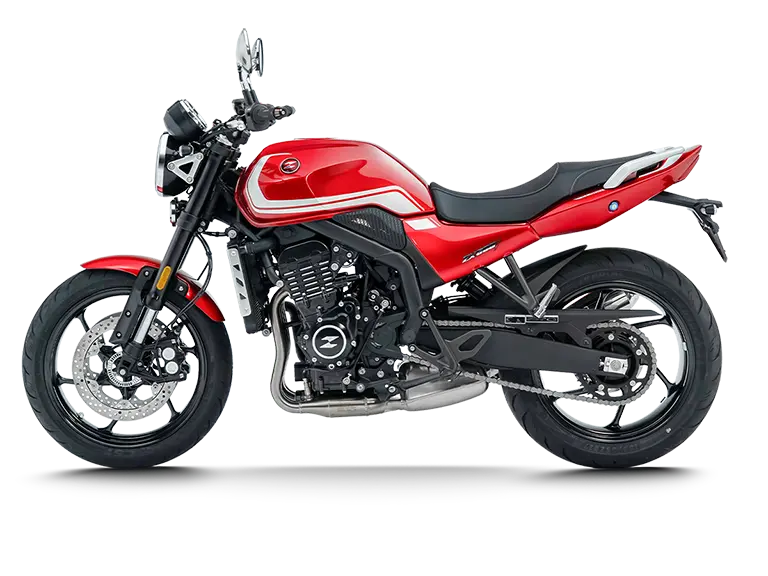

500F - Left View

STILL INTERESTED?

FINANCE CALCULATOR

£

Deposit

£500.00

Term

60 Months

Credit Score

60 Monthly Payments

£113.93

APR Starting From

12.9%

Total Price

£5,599.00

Total Extra

£1,736.80

Amount of Credit

£5,099.00

Total Amount Payable

£7,335.80

ZXMOTO work with MotoFinance who offer a wide range of finance packages and work with the majority of our dealerships. APR Rates starting from 12.9%. Representative Example: Borrowing £4,500 over 48 months with a representative APR of 22.9%, the annual interest rate of 22.9% (Fixed), and a deposit of £0.00, the monthly payment would be £138.94. The total cost of credit would be £2,169.12, and the total amount payable would be £6,669.12. MotoFinance are a credit broker and not a lender.

Whichever lender you are introduced to, MotoFinance will receive commission from them (either a fixed fee or a fixed percentage of the amount you borrow). For your reassurance, all of the lenders MotoFinance work with could pay commission at different rates, but the commission they receive does not influence the interest rate you will pay.

ZXMOTO is a trading style of Llexeter Ltd and is regulated and authorised by the Financial Conduct Authority (FCA).
